2,5 m³

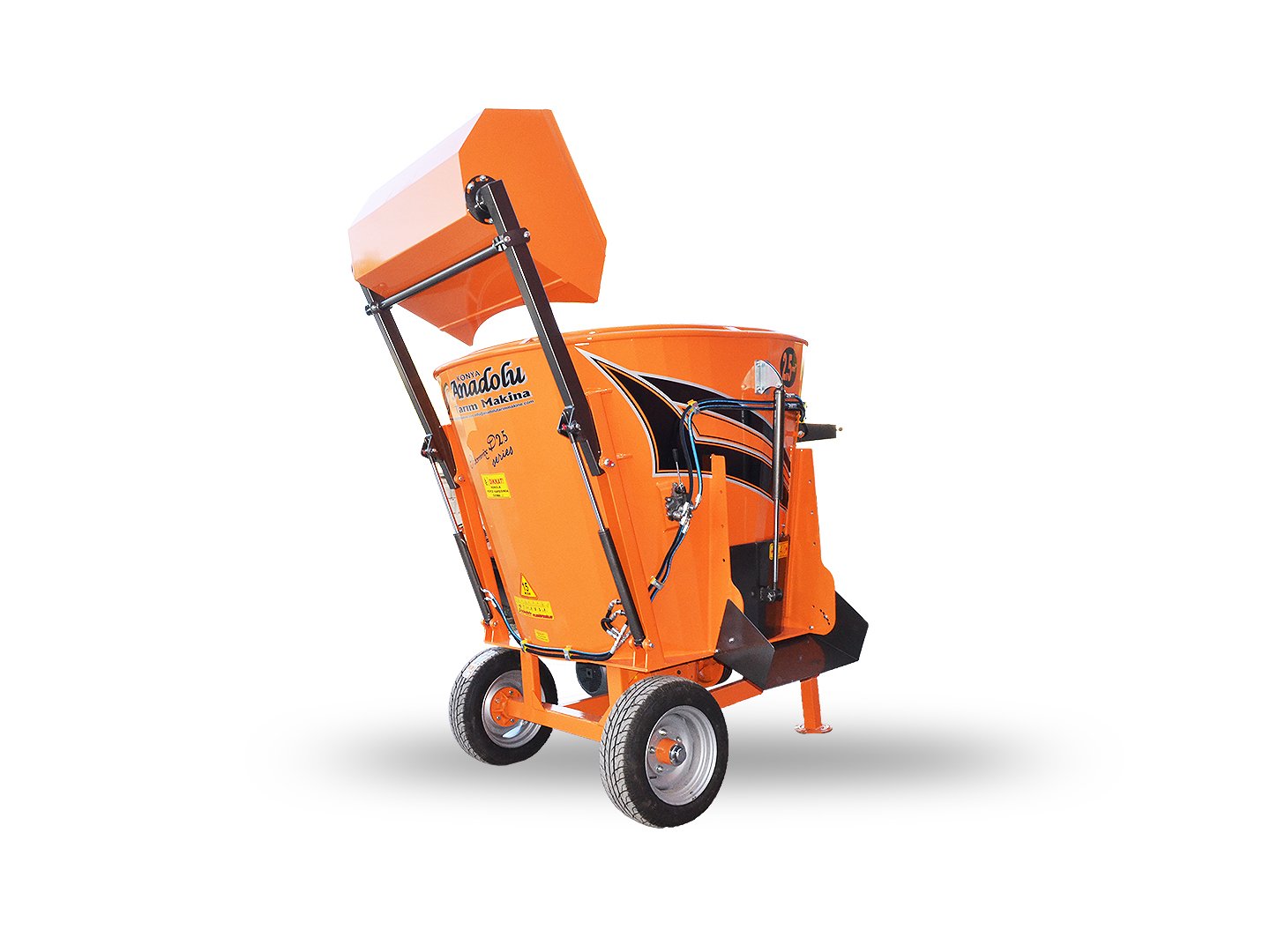

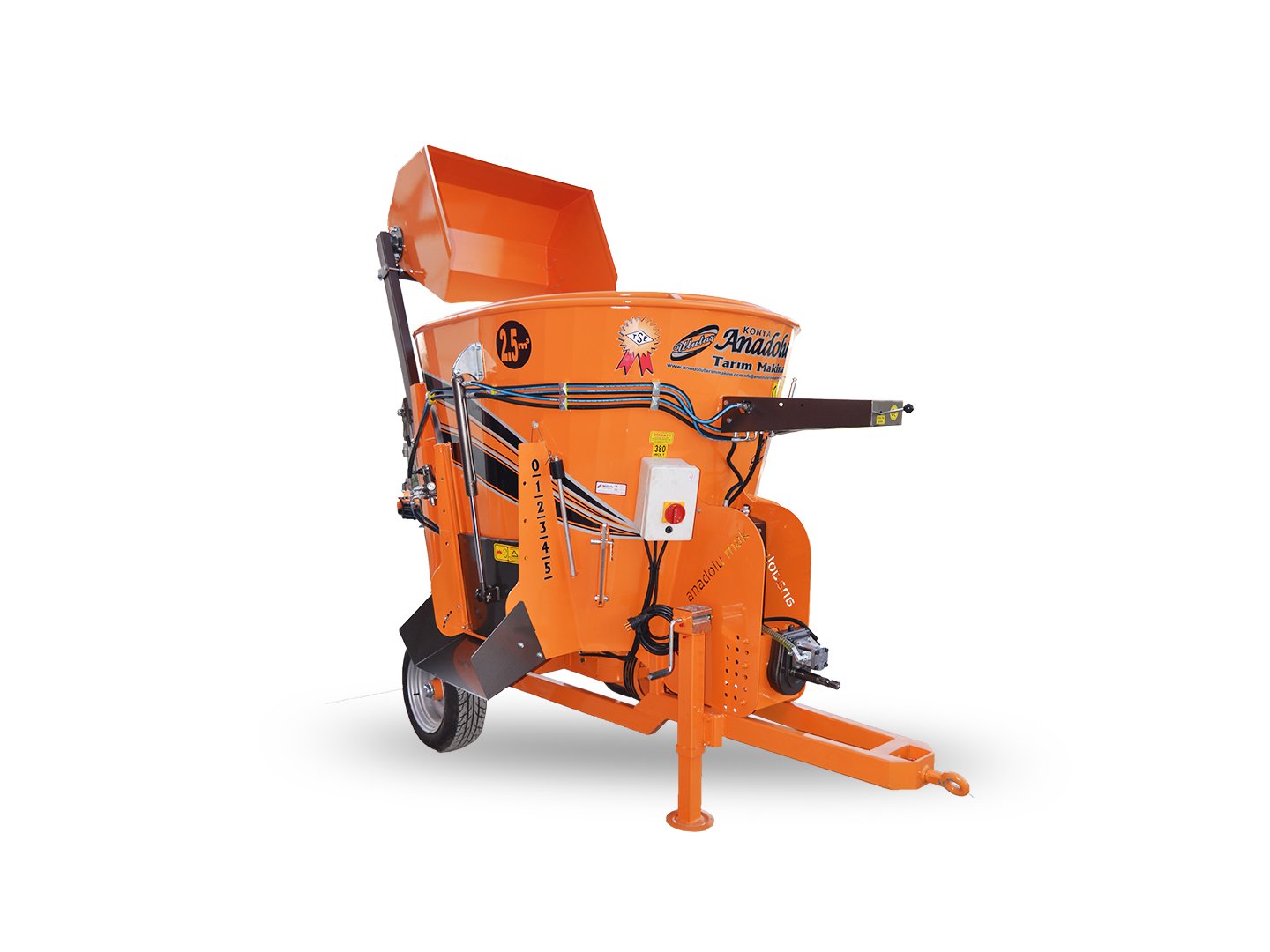

Vertical feed mixer and distribution trailers have single or double augers positioned vertically.
2,5 M³ VERTICAL FEED MIXER AND DISTRIBUTION TRAILER HAS SINGLE VERTICALLY DESIGNED AUDIO. WIRE SYSTEM IS DESIGNED WITH THE LATEST TECHNOLOGY AND EXPERIENCE, WITH THIS DESIGNED WIRE SYSTEM, IT CAN INCREASE THE HOMOGENEOUS LEVEL TO 95%, ALSO OUR SPECIAL DESIGN AND SPECIAL MATERIAL MATERIALS CAN BE PRODUCED FROM SPECIAL MATERIALS. 2.5 M³ FEED MIXED AND DISTRIBUTION TRAILER CAN PREPARE FEED FOR 40 TO 50 CAPITAL ANIMALS. VERTICAL FEEDING AND DISTRIBUTION TRAILER CAN BE PRODUCED WITH TRACTOR, ELECTRIC AND ELECTRIC / TRACTOR DEPENDING ON DESIRED SIZE AND FEATURES.
| CAPACITY (m³) | 2,5 m³ |
| MOTION TRANSMISSION SYSTEM | TRANSMISSION |
| POWER REQUIRED | 11 kw |
| POWER SOURCE | ELECTRIC AND TRACTOR |
| LENGTH (A)(mm) | 2900 |
| BUCKET LENGTH | 3900 |
| HEIGHT (B) (mm) | 2150 |
| HEIGHT WITH BUCKET (B1) (mm) | 3150 |
| BANDED WIDTH (D) (mm) | 2500 |
| BANDLESS WIDTH (D1) (mm) | 1900 |
| WHEEL TRACK WIDTH (D2) (mm) | 1800 |
| CURRENT WEIGHT (KG) | 1200 |
| POWER REQUIREMENT (PTO) | 30 hp |
| PTO SPEED | 540 rpm |
| WHEEL DIMENSIONS | 195/65 |
| SCREW SYSTEM | VERTICAL SINGLE |
| WEIGHING SYSTEM | OPTIONAL |
| FEED DISCHARGE DIRECTION | SINGLE RIGHT |
| TRACTOR SEPARATOR SYSTEM | MANUAL JACK |
| REAR LOADER BUCKET | THERE IS |
| TRANSMISSION PTO OUTPUTS | SINGLE |
| BASE SHEET THICKNESS (mm) | 12 |
| SIDE SHEET THICKNESS (mm) | 3 |
| BAND SYSTEM | Gutter System |
| DISCHARGE TAPE | OPTIONAL |
| HYDRAULIC DRAIN COVER | THERE IS |
| DRAWING AND WHEEL SYSTEM | THERE IS |
| КОЛИЧЕСТВО ЖИВОТНЫХ | 50 |
